| Bearing no. | F9-17 |
|---|

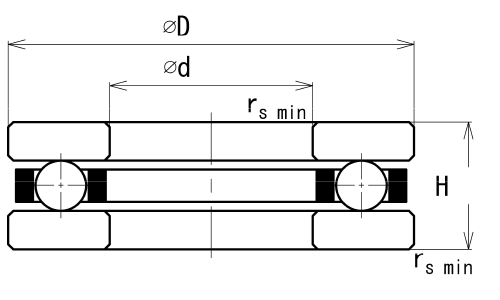

| Bore diameter | d | 9 mm0.3543 inch |
|---|
| Outer diameter | D | 17 mm0.6693 inch |
|---|
| Chamfer dimension | rs min | 0.2 mm0.0079 inch |
|---|
| Height | H | 5 mm0.1969 inch |
|---|
| Basic dynamic load rating | Ca | 567 N |
|---|
| Basic static load rating | Coa | 499 N |
|---|

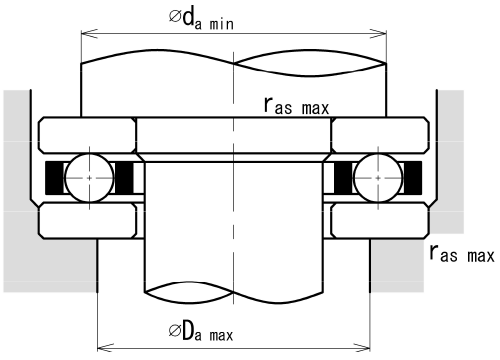

| Abutment and fillet dimensions | da min | 13.7 mm0.5394 inch |
|---|
| Da max | 12.1 mm0.4764 inch |
|---|
| ras max | 0.2 mm0.0079 inch |
|---|
| Ball size × quantity | 2.000 mm0.0787 inch × 9 |
|---|
| Mass (reference) | 5.25 g |
|---|
The above values are subject to change without notice for the improvement of products or other purposes. We have prepared this table with sufficient care, and we cannot be held responsible for any damage caused by possible errors or omissions.
