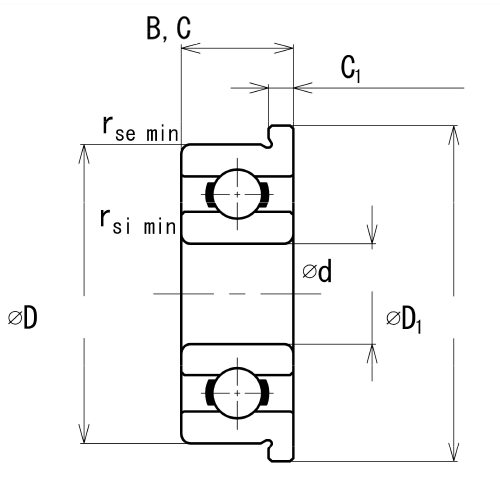

| Bearing no. | SMF84 |
|---|
| Bore diameter | d | 4 mm0.1575 inch |
|---|
| Outer diameter | D | 8 mm0.315 inch |
|---|
| Inner ring width | B | 2 mm0.0787 inch |
|---|
| Outer ring width | C | 2 mm0.0787 inch |
|---|
| Inner ring chamfer dimension | rsi min | 0.15 mm0.0059 inch |
|---|
| Outer ring chamfer dimension | rse min | 0.15 mm0.0059 inch |
|---|
| Flange outer diameter | D1 | 9.2 mm0.3622 inch |
|---|
| Flange width | C1 | 0.6 mm0.0236 inch |
|---|
| Basic dynamic load rating | Cr | 336 N |
|---|
| Basic static load rating | Cor | 112 N |
|---|
| Limiting speed | Grease | 67000 min-1 |
|---|
| Oil | 79000 min-1 |
|---|

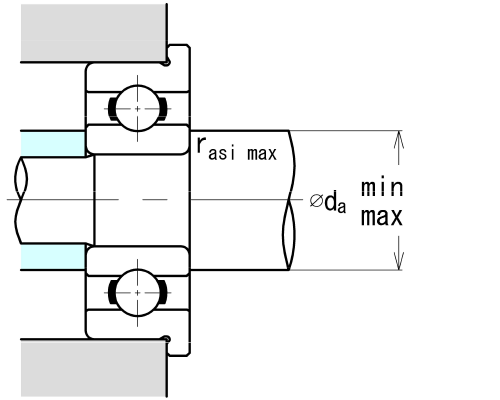

| Abutment and fillet dimensions | da min | 4.9 mm0.1929 inch |
|---|
| da max | 4.9 mm0.1929 inch |
|---|
| Da min | mm inch |
|---|
| Da max | mm inch |
|---|
| rasi max | 0.15 mm0.0059 inch |
|---|
| rase max | mm inch |
|---|
| Ball size × quantity | 1.200 mm0.0472 inch × 7 |
|---|
| Mass (reference) | 0.43 g |
|---|
The above values are subject to change without notice for the improvement of products or other purposes. We have prepared this table with sufficient care, and we cannot be held responsible for any damage caused by possible errors or omissions.
